Alfa AWUS051NH Installation and Configuration (VMware on MacOS)

I had a few questions about using an Alfa AWUS051NH wireless card, so I figured I would share a quick write-up about it.

Alfa AWUS051NH - Introduction

The nice thing about this particular Alfa card is that it supports 5GHz, as opposed to the AWUS036NHA.

I picked up two of these for any 5GHz engagements that I run into, plus as some primary use wireless cards.

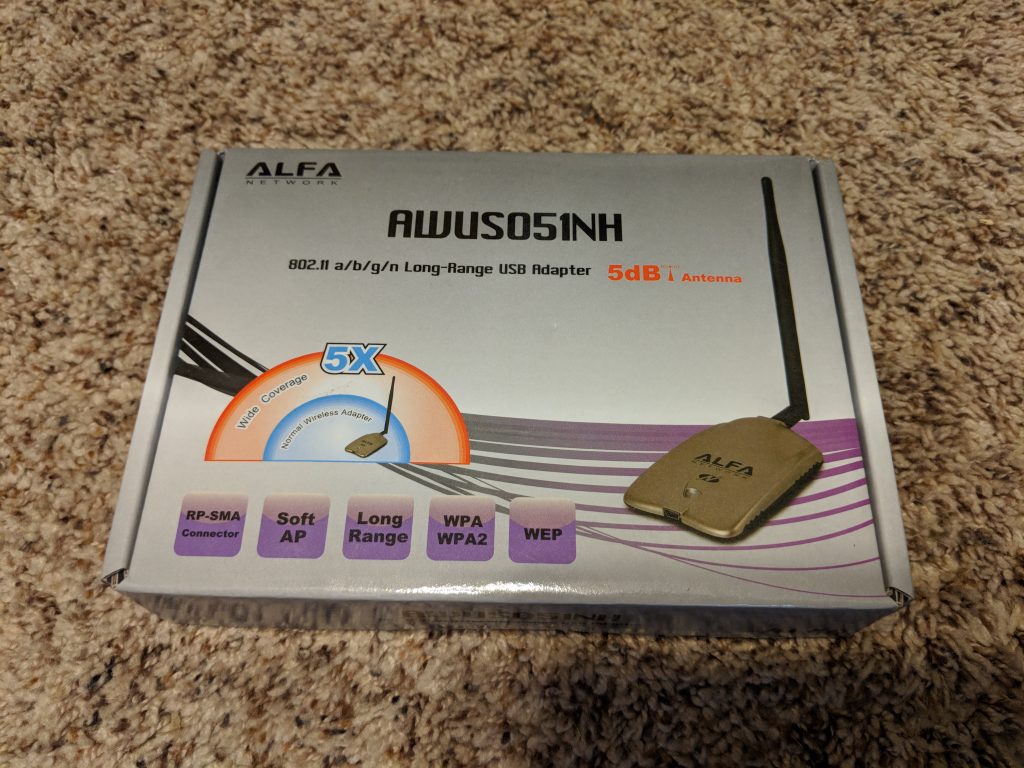

Alfa AWUS051NH - Wireless Card

Connecting to Kali

First, I plugged the card into my Mac, and VMware detected it just fine. Ignore the other USB device, that is just one of the wonderful USB-C dongles that I have to deal with.

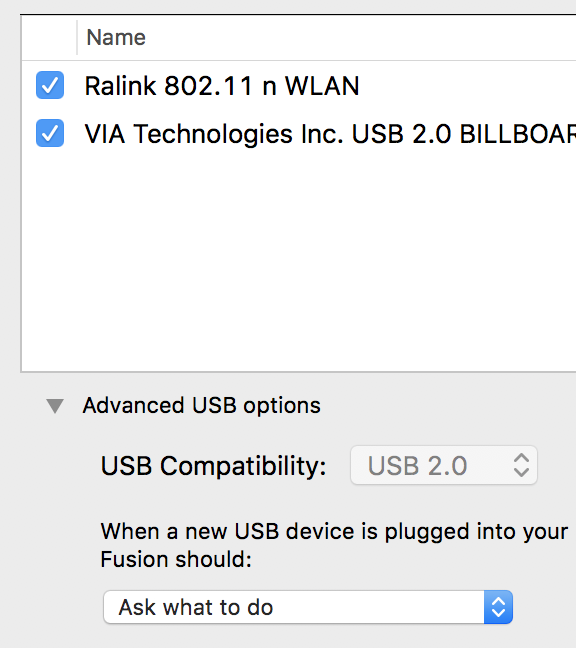

Alfa AWUS051NH - VMWare Connection

I passed it through to Kali, and Kali was also able to detect the card.

Alfa AWUS051NH - Connected

When I ran iwconfig, the card showed up as wlan0.

root@kali:~# iwconfig
lo        no wireless extensions.

wlan0     IEEE 802.11  ESSID:off/any
          Mode:Managed  Access Point: Not-Associated   Tx-Power=20 dBm
          Retry short  long limit:2   RTS thr:off   Fragment thr:off
          Encryption key:off
          Power Management:off

eth0      no wireless extensions.

Alfa AWUS051NH - Testing and Initial Issues

With the card connected and detected, it was time to put it into monitor mode.

root@kali:~# airmon-ng start wlan0

Found 3 processes that could cause trouble.
If airodump-ng, aireplay-ng or airtun-ng stops working after
a short period of time, you may want to run ‘airmon-ng check kill’

  PID Name
  521 NetworkManager
  651 dhclient
  700 wpa_supplicant

PHY	Interface	Driver		Chipset

phy0	wlan0		rt2800usb	Ralink Technology, Corp. RT3572

		(mac80211 monitor mode vif enabled for [phy0]wlan0 on [phy0]wlan0mon)
		(mac80211 station mode vif disabled for [phy0]wlan0)

Once I started monitor mode, I verified this by running iwconfig again.

root@kali:~# iwconfig
wlan0mon  IEEE 802.11  Mode:Monitor  Frequency:2.457 GHz  Tx-Power=20 dBm
          Retry short  long limit:2   RTS thr:off   Fragment thr:off
          Power Management:off

lo        no wireless extensions.

eth0      no wireless extensions.

Next, as the card was in monitor mode, it was time to test injection. Unfortunately, aireplay was finding 0 APs. I knew this was incorrect, as my onboard cards were finding plenty of access points in the area.

root@kali:~# aireplay-ng -9 wlan0mon
13:22:21  Trying broadcast probe requests...
13:22:23  No Answer...
13:22:23  Found 0 APs

Additionally, airodump was showing 0 access points as well.

 CH 12 ][ Elapsed: 36 s ][ 2017-12-05 13:17

 BSSID              PWR  Beacons    #Data, #/s  CH  MB   ENC  CIPHER AUTH ESSID


 BSSID              STATION            PWR   Rate    Lost    Frames  Probe

Fixing and Testing Injection

First, I verified my kernel, just to make sure that the card would work.

root@kali:~# uname -a
Linux kali 4.13.0-kali1-686-pae #1 SMP Debian 4.13.10-1kali1 (2017-11-03) i686 GNU/Linux

After a bit of searching and debugging, it appeared that my virtual machine USB settings were the culprit.

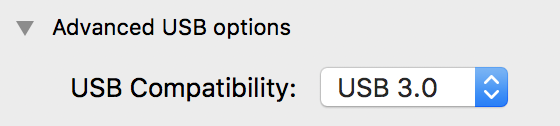

I shut down my VM and set the USB Compatibility to USB 3.0.

Alfa AWUS051NH - USB 3.0

With the USB settings changed, I verified that the card was still detected by Kali.

root@kali:~# iwconfig
eth0      no wireless extensions.

wlan0     IEEE 802.11  ESSID:off/any
          Mode:Managed  Access Point: Not-Associated   Tx-Power=20 dBm
          Retry short  long limit:2   RTS thr:off   Fragment thr:off
          Encryption key:off
          Power Management:off

lo        no wireless extensions.

With the card detected, it was time to put it back into monitor mode.

root@kali:~# airmon-ng start wlan0

Found 3 processes that could cause trouble.
If airodump-ng, aireplay-ng or airtun-ng stops working after
a short period of time, you may want to run ‘airmon-ng check kill’

  PID Name
  490 NetworkManager
  627 dhclient
  797 wpa_supplicant

PHY	Interface	Driver		Chipset

phy0	wlan0		rt2800usb	Ralink Technology, Corp. RT3572

		(mac80211 monitor mode vif enabled for [phy0]wlan0 on [phy0]wlan0mon)
		(mac80211 station mode vif disabled for [phy0]wlan0)

This time around, airodump was finding all the access points around me!

 CH  1 ][ Elapsed: 18 s ][ 2017-12-05 14:24

 BSSID              PWR  Beacons    #Data, #/s  CH  MB   ENC  CIPHER AUTH ESSID

 B8:27:xx:xx:xx:xx  -15       13        0    0   6  54e  WPA2 CCMP   PSK  Getxxxxx
 A4:6C:xx:xx:xx:xx  -44       12        0    0  11  54e. WPA2 CCMP   PSK
 A4:6C:xx:xx:xx:xx  -42       11       10    0  11  54e. WPA2 CCMP   PSK  GUEST_xxxxx
 A4:6C:xx:xx:xx:xx  -44       16        0    0  11  54e. WPA2 CCMP   PSK  WRxxxxx
 A4:6C:xx:xx:xx:xx  -59       16       26    0   1  54e. WPA2 CCMP   PSK  GUEST_xxxxx
 A4:6C:xx:xx:xx:xx  -51       20        0    0   1  54e. WPA2 CCMP   PSK  WRxxxxx
 A4:6C:xx:xx:xx:xx  -46       16      197   21   1  54e. WPA2 CCMP   PSK
 78:BA:xx:xx:xx:xx  -58       11        0    0   1  54e. WPA2 CCMP   PSK  WRxxxxx
 78:BA:xx:xx:xx:xx  -56       10        3    0   1  54e. WPA2 CCMP   PSK
 78:BA:xx:xx:xx:xx  -59       12        0    0   1  54e. WPA2 CCMP   PSK
 9C:D2:xx:xx:xx:xx  -63        8        0    0   6  54e. WPA2 CCMP   PSK  HP-Print-35-Color LaserJet MFP
 02:6B:xx:xx:xx:xx  -65        2        0    0   1  54e  WPA2 CCMP   PSK  DIRECT-xxxxx
 F8:A0:xx:xx:xx:xx  -67        6        0    0   1  54e. WPA2 CCMP   PSK  BHxxxxx

I also wanted to verify that the injection speeds were working properly.

root@kali:~# aireplay-ng -9 wlan0mon
14:24:48  Trying broadcast probe requests...
14:24:48  Injection is working!
14:24:49  Found 4 APs

14:24:49  Trying directed probe requests...
14:24:49  A4:6C:xx:xx:xx:xx - channel: 1 - ‘WRxxxx’
14:24:50  Ping (min/avg/max): 2.300ms/16.213ms/83.276ms Power: -56.07
14:24:50  30/30: 100%

14:24:50  78:BA:xx:xx:xx:xx - channel: 1 - ‘WRxxxx’
14:24:50  Ping (min/avg/max): 1.897ms/9.195ms/26.184ms Power: -64.80
14:24:50  30/30: 100%

14:24:50  F8:A0:xx:xx:xx:xx - channel: 1 - ‘BHxxxx’
14:24:52  Ping (min/avg/max): 1.120ms/14.078ms/68.255ms Power: -75.09
14:24:52  22/30:  73%

14:24:52  02:6B:xx:xx:xx:xx - channel: 1 - ‘DIRECT-xxxx’
14:24:58   0/30:   0%

It was great to see these numbers, as opposed to my AC1200 card.

Alfa AWUS051NH - Conclusion

While I ran into a few issues, it was super easy to get this card setup and running.

This is now my main wireless card, as it will handle A/B/G/N and 2.4/5GHz without any issues.

Hopefully I'll be able to share more wireless attacks soon, so let me know if there is anything specific that you'd like to see!
