Basic xortool Usage and Flag Capturing

With all of my CTF posts, I have neglected to talk about xortool.

xortool - Introduction

If you've never used it before, xortool is great at analyzing multi-byte xor ciphers.

You can grab it from the GitHub repository, and it's simple to use.

I've solved many a CTF challenge with it and wanted to give a few quick examples of that.

Installation

Installation was straightforward, just a git clone and then a setup.py.

root@kali:~/tools# git clone https://github.com/hellman/xortool
Cloning into 'xortool'...
remote: Enumerating objects: 228, done.
remote: Total 228 (delta 0), reused 0 (delta 0), pack-reused 228
Receiving objects: 100% (228/228), 253.66 KiB | 4.03 MiB/s, done.
Resolving deltas: 100% (106/106), done.
root@kali:~/tools# cd xortool/
root@kali:~/tools/xortool# python setup.py install
/usr/local/Cellar/python@2/2.7.16/Frameworks/Python.framework/Versions/2.7/lib/python2.7/distutils/dist.py:267: UserWarning: Unknown distribution option: 'install_requires'
  warnings.warn(msg)
running install
running build

I also needed to install docopt, which I grabbed with pip.

root@kali:~/Documents/xor/xortool_out# pip install docopt

After those steps, I was able to run the tool, and check out the options.

root@kali:~/Documents/xor# xortool -h
xortool
  A tool to do some xor analysis:
  - guess the key length (based on count of equal chars)
  - guess the key (base on knowledge of most frequent char)

Usage:
  xortool [-x] [-m MAX-LEN] [-f] [-t CHARSET] [FILE]
  xortool [-x] [-l LEN] [-c CHAR | -b | -o] [-f] [-t CHARSET] [FILE]
  xortool [-x] [-m MAX-LEN| -l LEN] [-c CHAR | -b | -o] [-f] [-t CHARSET] [FILE]
  xortool [-h | --help]
  xortool --version

Options:
  -x --hex                          input is hex-encoded str
  -l LEN, --key-length=LEN          length of the key
  -m MAX-LEN, --max-keylen=MAX-LEN  maximum key length to probe [default: 65]
  -c CHAR, --char=CHAR              most frequent char (one char or hex code)
  -b --brute-chars                  brute force all possible most frequent chars
  -o --brute-printable              same as -b but will only check printable chars
  -f --filter-output                filter outputs based on the charset
  -t CHARSET --text-charset=CHARSET target text character set [default: printable]
  -h --help                         show this help

Notes:
  Text character set:
    * Pre-defined sets: printable, base32, base64
    * Custom sets:
      - a: lowercase chars
      - A: uppercase chars
      - 1: digits
      - !: special chars
      - *: printable chars

Examples:
  xortool file.bin
  xortool -l 11 -c 20 file.bin
  xortool -x -c ' ' file.hex
  xortool -b -f -l 23 -t base64 message.enc

Encrypting the Message

First, I generated a random 16-byte hex string using this tool

4be220ecfa9fd46a84c5d6f2b8acb23c

Next, I grabbed the Hacker's Manifesto, to have some text to encrypt.

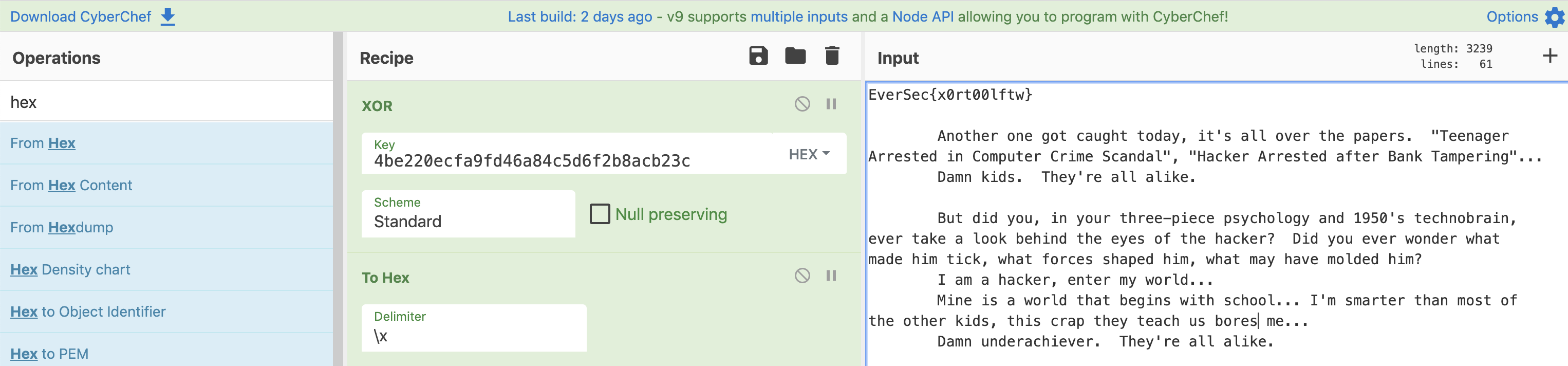

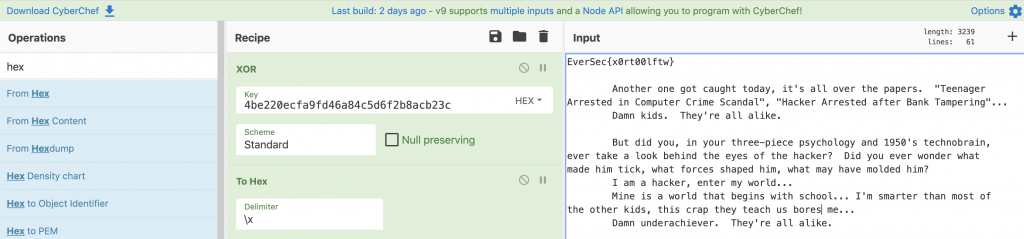

I used CyberChef to encrypt a flag and the manifesto with the key that I generated.

Xortool - CyberChet

As you can see, I successfully encrypted the text.

root@kali:~/Documents/xor# xxd encoded.txt
00000000: 0e94 459e a9fa b711 fcf5 a486 889c de5a  ..E............Z
00000010: 3f95 5de6 f0bf f44a a4e5 f6d2 98ed dc53  ?.]....J.......S
00000020: 3f8a 459e daf0 ba0f a4a2 b986 98cf d349  ?.E............I
00000030: 2c8a 54cc 8ef0 b00b fde9 f69b cc8b c11c  ,.T.............
00000040: 2a8e 4ccc 95e9 b118 a4b1 be97 98dc d34c  *.L............L
00000050: 2e90 53c2 dabf f63e e1a0 b893 dfc9 c036  ..S....>.......6
00000060: 0a90 5289 89eb b10e a4ac b8d2 fbc3 df4c  ..R............L

Xortool Decryption

First, I ran xortool without any flags against the encoded.txt file. As you can see, without any flags it will try to detect the mostly likely key length.

root@kali:~/Documents/xor# xortool encoded.txt
The most probable key lengths:
   2:   6.9%
   4:   10.9%
   6:   6.3%
   8:   16.6%
  12:   7.9%
  16:   20.8%
  20:   5.4%
  24:   8.1%
  32:   10.6%
  48:   6.4%
Key-length can be 4*n
Most possible char is needed to guess the key!

Next, I tried to brute-force the decryption key. I used a potential length of 16, as this was the mostly likely from the last command. I guessed that the most likely character would be a null-byte, as this is normally a safe bet (especially for binary files).

root@kali:~/Documents/xor# xortool -l 16 -c '\x00' encoded.txt
1 possible key(s) of length 16:
k\xc2\x00\xcc\xda\xbf\xf4J\xa4\xe5\xf6\xd2\x98\x8c\x92\x1c
Found 0 plaintexts with 95.0%+ valid characters
See files filename-key.csv, filename-char_used-perc_valid.csv

While the file almost decrypted, it was clearly not the exact decryption key.

root@kali:~/Documents/xor# cat xortool_out/0.out
eVERsEC[XRTLFTW]**aNOTHERONEGOTCAUGHTTODAY
                                          ITSALLOVERTHEPAPERStEENAGER*aRRESTEDINcOMPUTERcRIMEsCANDAL
                      hACKERaRRESTEDAFTERbANKtAMPERING*dAMNKIDStHEYREALLALIKE**bUTDIDYOU
PIECEPSYCHOLOGYANDSTECHNOBRAIN
                              *EVERTAKEALOOKBEHINDTHEEYESOFTHEHACKERdIDYOUEVERWONDERWHAT*MADEHIMTICK
                      WHATFORCESSHAPEDHIM
                                         WHATMAYHAVEMOLDEDHIM*iAMAHACKER
                                                                        ENTERMYWORLD*mINEISAWORLDTHATBEGINSWITHSCHOOLiMSMARTERTHANMOSTOF*THEOTHERKIDS

As the file appeared to be mostly plaintext, I figured that space may be an even more common character.

root@kali:~/Documents/xor# xortool -l 16 -c ' ' encoded.txt
1 possible key(s) of length 16:
K\xe2 \xec\xfa\x9f\xd4j\x84\xc5\xd6\xf2\xb8\xac\xb2<
Found 1 plaintexts with 95.0%+ valid characters
See files filename-key.csv, filename-char_used-perc_valid.csv

When I looked at the newly decrypted file, it was completely readable, and I got the flag!

root@kali:~/Documents/xor# head -5 xortool_out/0.out
EverSec{x0rt00lftw}

        Another one got caught today, it's all over the papers.  "Teenager
Arrested in Computer Crime Scandal", "Hacker Arrested after Bank Tampering"...
        Damn kids.  They're all alike.

Brute Force Attack

Using the -b flag, xortool will try to brute force all potential keys.

root@kali:~/Documents/xor# xortool -b encoded.txt
The most probable key lengths:
   2:   6.9%
   4:   10.9%
   6:   6.3%
   8:   16.6%
  12:   7.9%
  16:   20.8%
  20:   5.4%
  24:   8.1%
  32:   10.6%
  48:   6.4%
Key-length can be 4*n
256 possible key(s) of length 16:
k\xc2\x00\xcc\xda\xbf\xf4J\xa4\xe5\xf6\xd2\x98\x8c\x92\x1c
j\xc3\x01\xcd\xdb\xbe\xf5K\xa5\xe4\xf7\xd3\x99\x8d\x93\x1d
i\xc0\x02\xce\xd8\xbd\xf6H\xa6\xe7\xf4\xd0\x9a\x8e\x90\x1e
h\xc1\x03\xcf\xd9\xbc\xf7I\xa7\xe6\xf5\xd1\x9b\x8f\x91\x1f
o\xc6\x04\xc8\xde\xbb\xf0N\xa0\xe1\xf2\xd6\x9c\x88\x96\x18
...
Found 51 plaintexts with 95.0%+ valid characters
See files filename-key.csv, filename-char_used-perc_valid.csv

As you can see, the 000.out file matched the first attempt using the null byte.

root@kali:~/Documents/xor/xortool_out# head -1 000.out
eVERsEC[XRTLFTW]**aNOTHERONEGOTCAUGHTTODAY
                                          ITSALLOVERTHEPAPERStEENAGER*aRRESTEDINcOMPUTERcRIMEsCANDAL

Additionally, the 032.out file was the properly decoded file.

root@kali:~/Documents/xor/xortool_out# head -1 032.out
EverSec{x0rt00lftw}

Looking at the filename-key.csv file, we can see the actual decryption keys that were used for each run.

root@kali:~/Documents/xor/xortool_out# cat filename-key.csv
file_name;key_repr
xortool_out/000.out;kc200ccdabff4Ja4e5f6d2988c921c

...

xortool_out/032.out;Ke220ecfa9fd4j84c5d6f2b8acb23c

Unfortunately, the keys will convert any printable characters from hex to ASCII, but the 032.out matches our original key of "4be220ecfa9fd46a84c5d6f2b8acb23c".

To make things even simpler, I grepped all of the output files for potential strings from the probable-wordlists files, and 032.out came out a winner.

root@kali:~/Documents/xor/xortool_out# grep -ow -F -f ~/tools/Probable-Wordlists/Real-Passwords/Top207-probable-v2.txt *.out
032.out:junior
032.out:computer
056.out:88888888
88888888
88888888
88888888
88888888
88888888

Xortool - Conclusion

While this was just a simple demonstration, xortool is a great tool to have in your CTF belt.

I've also had it be useful once or twice for some home-rolled encryption during engagements.

Stay tuned for even more CTF posts, as I'm finally finishing some more write-ups!
